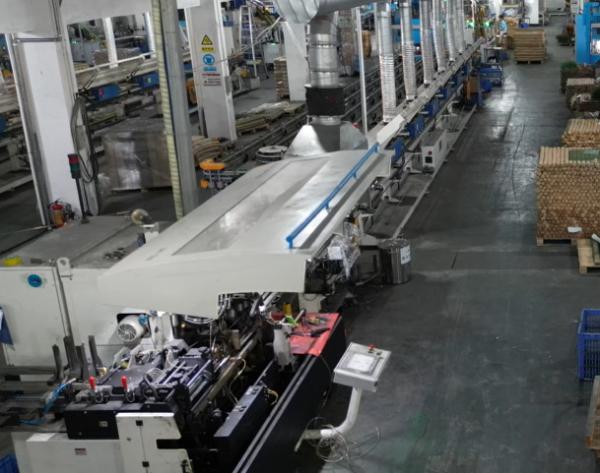

Intelligent Metal Can Body Welding Machine
Description
This product applies to the welding of carious cam, such as food cans, chemical cans and square bucket. It can be matched with the inner and outer coating machine and the drying machine of the can body. According to customer’s demands to accelerate the speed. Non-mercury welding device, remote control system, weld seam detecting system are available to the equipped.
Technical Specification
Production capability | 20-80 cans/min |
Applicable can diameter | Φ52-Φ175mm |
Applicable can height | 70-420mm |
Applicable material | Tinplate/Steel-based |
Applicable material thickness | 0.18-0.42mm |
Seam welding landing | 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5-0.8mm |
Applicable copper wire diameter | Φ1.38mm Φ1.5mm |
Cooling water | Temperature:12-18℃ Pressure:0.4 -0.5Mpa |
Discharge: | 7L/min |
Compressed air consumption | 600L/min |
Pressure of compressed air | 0.5Mpa-0.7Mpa |
Power | 1200x1100x1800mm |
Total power | 18kg |
Dimension | 1750x1100 |
Regarding Production Process
Related Specification
Welding Speed(m/min) | Diameter Range(mm) | Production Speed(CPM) | Cans Height Range(mm) |
6-23m/min | Φ220-Φ300mm | 30-50 cans/min | 250-450mm |
6-21m/min | Φ220-Φ300mm | 15-30 cans/min | 250-450mm |
6-26m/min | Φ65-Φ180mm | 40-100cans/min | 70-320mm |
6-18m/min | Φ52-Φ175mm | 20-80 cans/min | 70-420mm |
18m-40m/min | Ф65(Ф52)mm-Ф176mm | 300 cans /min | 70-260mm(320mm) |
6-18m/min | Φ52-Φ175mm | 20-80 cans/min | 70-420mm |
12m-20m/min | Ф65(Ф52)mm-Ф176mm | 150 cans /min | 70mm-260mm (320mm) |
ADAPTS to tinplate thickness:0.16MM-0.43MM | |||
MORE MODELS,CLICK HERE. | |||
FAQ:
Q1: Are auxiliary devices like water chillers included?
A1: The price does not include auxiliary devices. However, we offer a
range of auxiliary equipment, such as welding wheels and water
chillers, as optional add-ons for customers. Purchasing these as a
package from us provides a cost-effective option.
Q2: How many molds are included with a welding machine? If
additional molds are needed, what is the cost?
A2: Each welding machine comes with one standard mold included. If an
additional mold is required, the cost is ¥12,000 per set. This
price reflects a discounted rate for customers purchasing the
welding machine directly from us. For subsequent purchases,
additional shipping costs, such as air freight, may apply.
Q3: How can I choose a suitable and stable welding machine within
my budget?
A3: Please share details about your desired production speed and
product requirements. Based on this information, we will recommend
a cost-effective option, whether a semi-automatic, automatic, or
fully automatic variable frequency welding machine, tailored to
your needs
|
|
